Möchte man via Python den Status einen Systems auslesen und die Werte dann vielleicht noch an einen MQTT Broker schicken, damit zum Beispiel Grafana oder openHAB diese verwenden kann, kann man dies mit den Python Libraries gpiozero und psutil machen. Für MQTT verwenden wir dann paho-mqtt.

Es wird die Uptime des Systems ausgelesen, die CPU Temperatur und Auslastung, die Load, der Ram und die Festplatte (/).

Der Output des Scripts ist folgender:

---System Informations---
System Uptime: 19:40:41.538989 - 1181 min
CPU Temperatur: 37.4 °C
CPU Usage: 1 %
Load average: 0.23 0.25 0.16
Ram Total: 368.4 MiB
Ram Used: 35.7 MiB
Ram Free: 137.0 MiB
Ram Usage: 28.3 %
Disk Total: 29.0 GiB
Disk Used: 2.1 GiB
Disk Free: 25.7 GiB
Disk Usage: 7.4 %

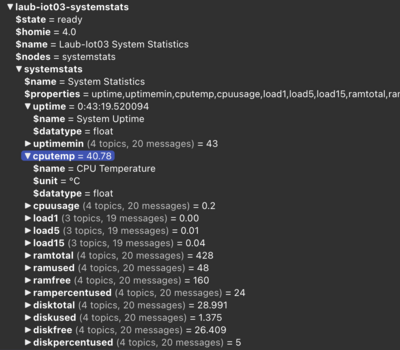

Via MQTT werden die folgenden Topics publiziert:

uptime uptime_min cpu_temp cpu_usage load_1 load_5 load_15 ram_total ram_used ram_free ram_percent_used disk_total disk_used disk_free disk_percent_used

Vorrausetzungen

zuerst muss natürlich Python3 und die benötigten Libraries installiert werden:

apt update && apt install python3 python3-pip python3-paho-mqtt python3-gpiozero python3-psutil

# oder via pip3
pip3 install paho-mqtt
pip3 install psutil
pip3 install gpiozero

System Status Script mit Ausgabe

Download hier möglich:

systemstats.py

#!/usr/bin/python3
from gpiozero import CPUTemperature
import psutil
import datetime

# do the stuff
uptime = datetime.datetime.now() - datetime.datetime.fromtimestamp(psutil.boot_time())
uptime_min = (uptime.seconds+uptime.days*24*3600)/60

cpu_temp = CPUTemperature()

cpu_usage = psutil.cpu_percent(interval=1, percpu=False)

load_1, load_5, load_15 = psutil.getloadavg()

ram = psutil.virtual_memory()
ram_total = ram.total / 2**20       # MiB.
ram_used = ram.used / 2**20
ram_free = ram.free / 2**20
ram_percent_used = ram.percent

disk = psutil.disk_usage('/')
disk_total = disk.total / 2**30     # GiB.
disk_used = disk.used / 2**30
disk_free = disk.free / 2**30
disk_percent_used = disk.percent

print("---System Informations---")
print("System Uptime: %s - %.0f min" % (uptime, uptime_min))
print("CPU Temperatur: {:.1f}".format(cpu_temp.temperature) + " °C")
print("CPU Usage: {:.0f} %".format(cpu_usage))
print("Load average: %.2f %.2f %.2f" % (load_1, load_5, load_15))
print("Ram Total: %.1f MiB\nRam Used: %.1f MiB\nRam Free: %.1f MiB\nRam Usage: %.1f %%" % (ram_total, ram_used, ram_free, ram_percent_used))
print("Disk Total: %.1f GiB\nDisk Used: %.1f GiB\nDisk Free: %.1f GiB\nDisk Usage: %.1f %%" % (disk_total, disk_used, disk_free, disk_percent_used))

System Status Script mit MQTT Einbindung

Download hier möglich:

systemstats-mqtt.py

#!/usr/bin/python3
from gpiozero import CPUTemperature
import psutil
import datetime
import paho.mqtt.client as mqtt
import ssl

# set the variables
broker = "FQDN / IP ADDRESS"
port = 8883
publish_topic = "home/DEVICENAME"
clientid = "DEVICENAME-systemstats"
username = "mosquitto"
password = "PASSWORD"
insecure = True
qos = 1
retain_message = True


# do the stuff
uptime = datetime.datetime.now() - datetime.datetime.fromtimestamp(psutil.boot_time())
uptime_min = (uptime.seconds+uptime.days*24*3600)/60

cpu_temp = CPUTemperature()

cpu_usage = psutil.cpu_percent(interval=1, percpu=False)

load_1, load_5, load_15 = psutil.getloadavg()

ram = psutil.virtual_memory()
ram_total = ram.total / 2**20       # MiB.
ram_used = ram.used / 2**20
ram_free = ram.free / 2**20
ram_percent_used = ram.percent

disk = psutil.disk_usage('/')
disk_total = disk.total / 2**30     # GiB.
disk_used = disk.used / 2**30
disk_free = disk.free / 2**30
disk_percent_used = disk.percent

def publish(topic, payload):
  client.publish(publish_topic + "/" + topic,payload,qos,retain_message)

#MQTT Connection
client=mqtt.Client(clientid)
client.username_pw_set(username, password)
client.tls_set(cert_reqs=ssl.CERT_NONE) #no client certificate needed
client.tls_insecure_set(insecure)
client.connect(broker, port)
client.loop_start()

#Publish the stuff
publish("uptime", str(uptime))
publish("uptime_min", (uptime_min))
publish("cpu_temp", cpu_temp.temperature)
publish("cpu_usage", cpu_usage)
publish("load_1", load_1)
publish("load_5", load_5)
publish("load_15", load_15)
publish("ram_total", ram_total)
publish("ram_used", ram_used)
publish("ram_free", ram_free)
publish("ram_percent_used", ram_percent_used)
publish("disk_total", disk_total)
publish("disk_used", disk_used)
publish("disk_free", disk_free)
publish("disk_percent_used", disk_percent_used)

#MQTT Disconnect
client.disconnect()
client.loop_stop()


"""
print("---System Informations---")
print("System Uptime: %s - %.0f min" % (uptime, uptime_min))
print("CPU Temperatur: {:.1f}".format(cpu_temp.temperature) + " °C")
print("CPU Usage: {:.0f} %".format(cpu_usage))
print("Load average: %.2f %.2f %.2f" % (load_1, load_5, load_15))
print("Ram Total: %.1f MiB\nRam Used: %.1f MiB\nRam Free: %.1f MiB\nRam Usage: %.1f %%" % (ram_total, ram_used, ram_free, ram_percent_used))
print("Disk Total: %.1f GiB\nDisk Used: %.1f GiB\nDisk Free: %.1f GiB\nDisk Usage: %.1f %%" % (disk_total, disk_used, disk_free, disk_percent_used))
"""
